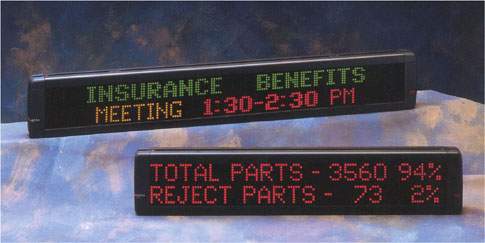

Adaptive’s most popular display lines. The ALPHA 4000 Series is avaible in five lengths, each sign displays two lines of 2.1” characters, or one line of 4.8” characters for maximum impact. Tri-color models display three colors-red, green and amber (also avaiblable in mono-chromatic red only). Exellent for larger work areas such as factories and warehouses requiring more information displayed. NEMA 2 and NEMA 12 upgrade options are available for all 4000 Series models.
Sizes |
4080c |
4120c/r |
4160c/r |
4200c/r |
4240c/r |
| Case Dimensions: ( With power supply ) |
28.2"L x 5.5"D x 7.7"H (71.6 cmL x 14.0 cmD x 19.6 cmH ) |
40.1"L x 5.5"D x 7.7"H (109.9 cmL x 14.0 cmD x 19.6 cmH ) |
52.1"L x 5.5"D x 7.7"H (132.3 cmL x 14.0 cmD x 19.6 cmH ) |
64.1"L x 5.5"D x 7.7"H (162.8 cmL x 14.0 cmD x 19.6 cmH ) |
76.1"L x 5.5"D x 7.7"H (193.3 cmL x 14.0 cmD x 19.6 cmH ) |
| Approximate Weight : | 13 lbs. (5.8 kg.) | 18.5 lbs. (8.4 kg.) | 24.5 lbs. (11.2 kg.) | 31 lbs. (14.1 kg.) | 37.5 lbs. (17 kg.) |
| Display Dimensions : | 24"L x 4.8"H (60.9 cmL x 12.2 cmH) |
36"L x 4.8"H (91.4 cmL x 12.2 cmH) |
48"L x 4.8"H (121.9 cmL x 12.2 cmH) |
60"L x 4.8"H (152.4 cmL x 12.2 cmH) |
72"L x 4.8"H (182.8 cmL x 12.2 cmH) |
| Display Array | 80 x 16 pixels | 120 x 16 pixels | 160 x 16 pixels | 200 x 16 pixels | 240 x 16 pixels |
| Characters Displayed One-line Two-line |
min/typ/max 6/8/10 26/26/40 |
min/typ/max 10/12/15 40/40/60 |
min/typ/max 14/16/20 52/52/80 |
min/typ/max 18/20/25 66/66/100 |
min/typ/max 20/24/30 80/80/120 |
| Display Memory | 28,000 | 28,000 | 28,000 | 28,000 | 28,000 |
